    High-Amperage Bolt Type Fuse PEC Pacific SBFW-K DC32V Mega Fuse

    Ask Lasest Price
    Brand Name : PEC pacific
    Model Number : SBFW-K
    Certification : ROHS
    Price : Negotiable
    Payment Terms : 100% TT,Paypal
    Supply Ability : 5000pcs every day
    Delivery Time : 7 days
    MOQ : 2000 Pieces
    • Product Details
    • Company Profile

    High-Amperage Bolt Type Fuse PEC Pacific SBFW-K DC32V Mega Fuse

    Product Description:

    Item nameSpecification
    PorductPEC Pacific SBFW-K High-amperage bolt type fuse DC32V mega fuse
    MaterialPC,copper
    Voltage32Vdc
    Current80A to 500A
    Breaking capacity2000A
    Environmental temperature-40℃ to120
    StandardISO8820-5
    Package100pcs/bag

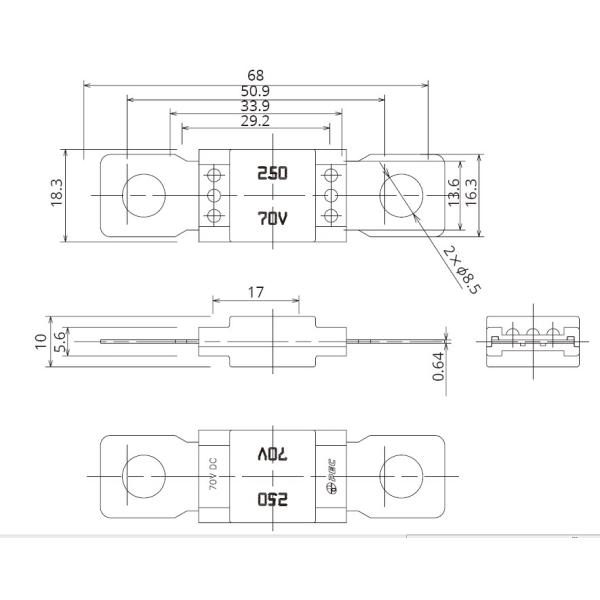

    Dimension(mm):

    Product photos:


    Time-Current Characteristic Curves:

    80A to 250A Time-Current Characteristic
    % of Ampere Rating(A)Operating Time (Min / Max)
    100%4hrs / -
    135%120 s / 1800 s
    200%1 s / 15 s
    350%0.3 s / 5 s
    600%0.1 s / 1 s

    300A to 500A Time-Current Characteristic
    % of Ampere Rating(A)Operating Time (Min / Max)
    75%4hrs / -
    200%1 s / 15 s
    350%0.5 s / 5 s
    600%0.1 s / 1s

    Related type fuse:

    Company:

    DongGuan TianRui Electronics Co., Ltd. is specialized in developing, manufacturing and marketing PEC Pacific SBFW-K High-amperage bolt type fuse DC32V mega fuse,fuse tube and fuse holders with different performance, types and specifications since year 2000. Our products are widely used for the household electric appliances and auto industry.
