    Littelfuse 04980933.X MDB Sealed Power Distribution Fuse Holder 200A 58V 2 Pole 3 Pole MIDI ANS Fuse Midi ANS

    Ask Lasest Price
    Brand Name : Littelfuse
    Model Number : 04980933
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 15000pcs per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Littelfuse 04980933.X MDB Sealed Power Distribution Fuse Holder 200A 58V 2 Pole 3 Pole MIDI ANS Fuse Midi ANS

    Size 131x68x38mm
    Product Name Littelfuse 04980933.X MDB Sealed Power Distribution Fuse Holder 200A 58V 2 Pole 3 Pole MIDI ANS Fuse Midi ANS Fuse Holder
    Max Total Current 200A
    Voltage 6-58VDC
    Fuse Torque 5Nm
    Mounting Torque 6-8Nm
    Operating Temperature -40C to +80C
    Ingress Protection IP76, IP69K
    Flammaybility UL-94V0
    Wire Size Input: 16-25mm², Output: 6-16mm²

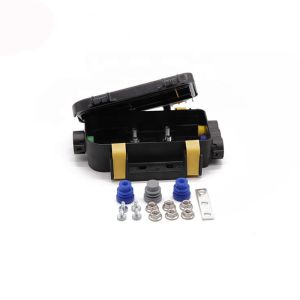

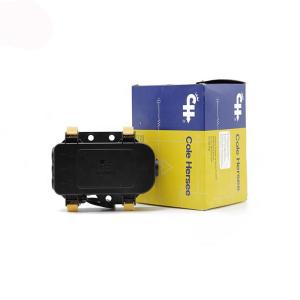

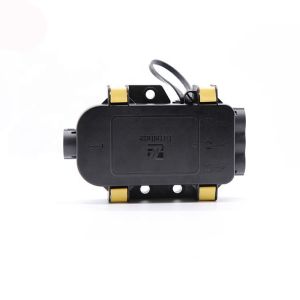

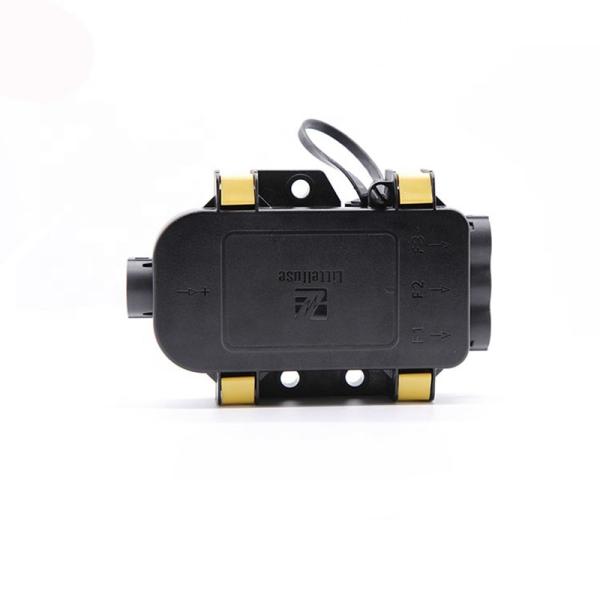

    Photos of Littelfuse 04980933.X MDB Sealed Power Distribution Fuse Holder

    200A 58V 2 Pole 3 Pole MIDI ANS Fuse Midi ANS Fuse Holder

    Littelfuse 04980933.X MDB Sealed Power Distribution Fuse Holder 200A 58V 2 Pole 3 Pole MIDI ANS Fuse Midi ANS

    Description

    The MDB series is an internally bussed, water-proof and dust-proof fuse holder developed for high current loads, and harsh conditions. The unit is well-suited for near-the-battery applications and can be mounted in exposed locations to fit your design. The MDB series can be configured with 2 or 3 MIDI fuses and includes the cover seal and M5 thread bolts for a fuse installation. Cable seals (grommets) are optional and fuses are sold separately.

    Features and Benefits

    • Yellow positive-sealing latches keep the cover securely in place while allowing for fast service.

    • Included tether connects cover to base preventing misplacement

    • The module is internally bussed allowing for high current power distribution

    • Innovative cable seals provide a tight seal for power cables in a variety of diameters

    • Rugged mounting holes allow secure fastening

    • Sealed to IP67 and IP69K for maximum flexibility in mounting location

    • Spare fuse location built into cover for easy replacement.

    Applications

    • Construction Vehicles

    • Agricultural Vehicles

    • High amperage loads
