    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : 3225 4032
    Certification : ROHS/UL
    Payment Terms : 100% TT,Paypal
    Supply Ability : 5000pcs every day
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    Product
    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V to 750V
    Series
    4032 3225
    Structure
    Zinc Oxide Varistor
    Voltage
    200V to 750V
    Withstand Voltage
    ≥2.5 KVRMS
    Operating Temperature
    -40 ~ +125 ℃
    Insulation Resistance
    ≥100 MΩ
    Type
    SMD
    Approval
    UL/ROHS

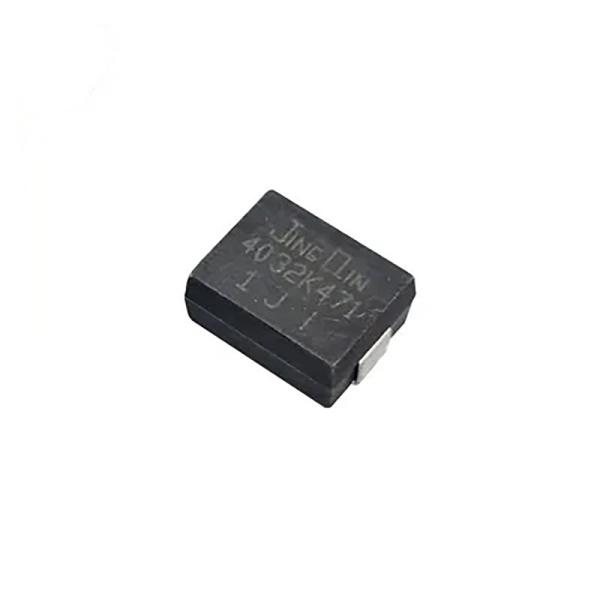

    Photos of MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V to 750V

    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750VMVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750VMVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    Size(mm) of 3225

    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    Size(mm) of 4032

    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    Features
    3225 4032 series varistors (Plastic SMD Type) is an innovative products instead of the leads acording to customers’ demands such as big size SMD components. It is widely used in LED driving power supply, communication equipment, carrier module,security equipment etc. In which reflow welding process is adopted. 3225 SMD Varistor replace 07D plug in varistor and 4032 SMD Varistor replace 10D dip varistor.
    1. RoHS compliant
    2. Available for SMT flow/reflow soldering
    3. Low profile and space saving
    4. Large capability to withstand high surge current
    5. Low inductance construction with excellent response
    6. Encapsulation material according to UL94-V0
    7. Operating temperature range: -40°C ~ +125°C
    Storage temperature range: -40°C ~ +125°C
    8. Agency recognition: UL

    Application
    1. Power supply
    2. Home appliance
    3. Industrial equipment
    4. Telecommunication or telephone system

    Related types of varistors
    MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V To 750V

    FAQ

    1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?

    A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to us.You don't have to worry about the carriage charge we will pay for that.

    2Q:Are we a trader or manufacturer?

    A:Both

    3Q:Why do you have choose us?

    A:High quality. Competive price. Fast shipping.

    4Q:What is approval?

    A:ROHS/UL of MVS-P Series MOV 3225 4032 Encapsulated Type SMD Varistor 18V to 750V
