    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection

    Ask Lasest Price
    Brand Name : Tianrui
    Model Number : TR34
    Certification : ROHS/UL
    Payment Terms : 100% TT,Paypal
    Supply Ability : 5000pcs every day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection

    Product Name
    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection
    Withstanding Surge Current
    40kA
    Varistor Voltage
    U1mA=621V(558V~682V)
    Leakage Current
    ≤10μA (75% of U1mA(DC),25℃)
    Terminal Type
    Tinned copper plate
    Single-Pulse Maximum Energy(2ms)
    800J
    Feature
    Protection of the post-stage circuit

    Photos

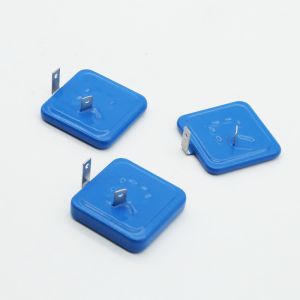

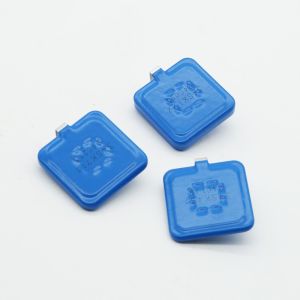

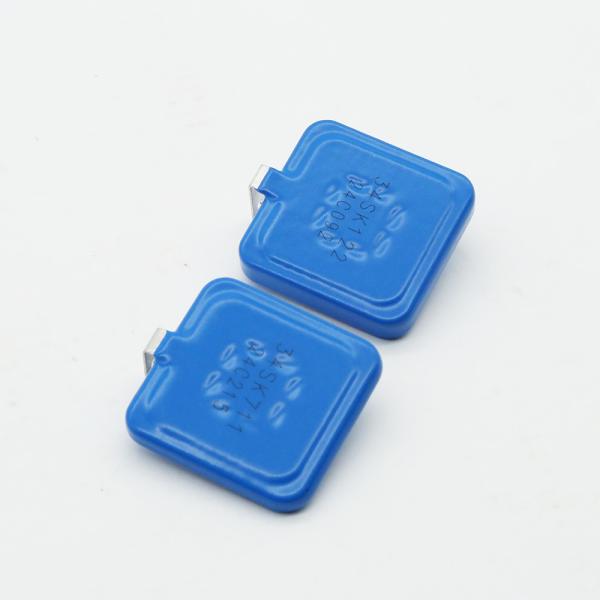

    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection

    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection

    Size(mm)

    34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection

    Features
    • Wide operating voltage (V1mA) range from 240V~1600V
    • Fast responding to transient over-voltage.
    • Large absorbing transient energy capability.
    • Low clamping ratio and no following-on current.

    General Information
    • Surge protection in consumer electronics
    • Surge protection in industrial electronics
    • Relay and electromagnetic valve surge absorption
    • Transistor, diode, IC, thyristor or triac semiconductor protection
    • Surge protection in electronic home appliances, gas and petroleum appliances

    FAQ

    1Q:What can I do if I got a broken product from DONGGUAN TIANRUI?

    A:First of all please tell us as soon as possible after we send a new one to you immediately but please send the broken product to us.You don't have to worry about the carriage charge we will pay for that.

    2Q:Are we a trader or manufacturer?

    A:Both

    3Q:Why do you have choose us?

    A:High quality. Competive price. Fast shipping.

    4Q:What is approval?

    A:ROHS/UL of 34mm Squareness MOV Power Surge Protector Arrester Chip SPD Varistor Effective for Power Surge Protection
